Understanding System Architecture: A Beginner-Friendly Guide

Introduction

What System Architecture Means

System architecture refers to the structured design and organization of all components within a computer system. This includes hardware, software, networking, and data layers working together to ensure smooth and efficient system performance.

Why Beginners Should Learn System Architecture

Understanding system architecture helps beginners grasp how different parts of a system interact, how applications run, and how data flows. It builds a solid foundation for anyone entering fields like IT, software development, cybersecurity, or cloud computing.

Importance in Modern Computing

In today’s digital world, well-designed system architecture is essential for building scalable, secure, and high-performing applications. From mobile apps to cloud platforms and large enterprise systems, architecture determines reliability, speed, and overall user experience.

What Is System Architecture?

Definition in Simple Terms

System architecture is the blueprint or structural design that defines how a computer system works. It outlines how different components—like hardware, software, networks, and data—are organized and how they interact to perform tasks efficiently.

How Architecture Shapes System Functionality

The architecture determines how a system processes information, handles workloads, manages resources, and ensures performance. A good architecture makes a system faster, more reliable, easier to maintain, and capable of scaling as requirements grow.

Relationship Between Hardware, Software, and Networks

System architecture connects three major elements:

• Hardware: Physical components such as CPU, RAM, storage, and networking devices.
• Software: Operating systems, applications, and system utilities that control and operate the hardware.
• Networks: Communication channels that allow systems and devices to exchange data.

Together, these layers form a complete ecosystem that defines how a system functions, communicates, and performs in real-world environments.

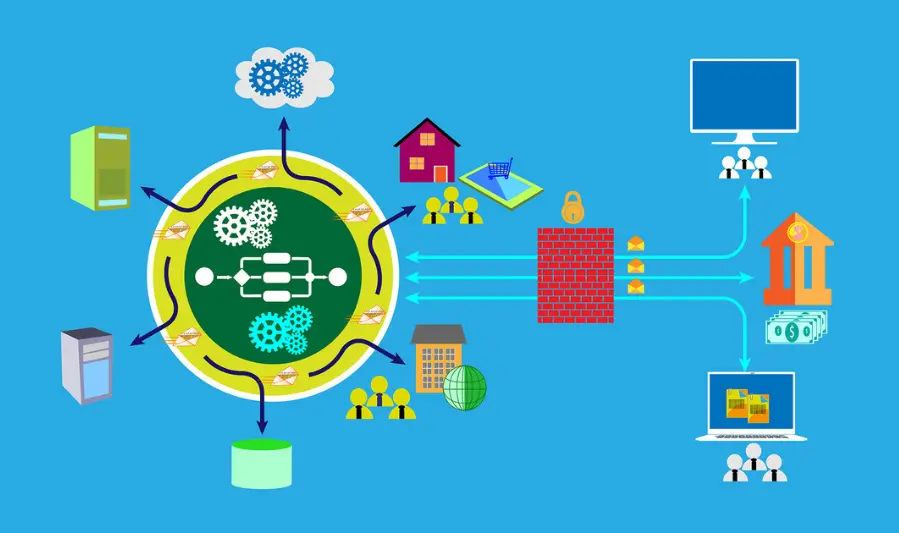

Core Components of System Architecture

3.1 Hardware Components

Hardware forms the physical foundation of any computer or network system.

Servers, CPUs, Memory, Storage

• Servers: Machines that host applications, websites, and services.
• CPUs: Process instructions and perform computations.
• Memory (RAM): Stores data temporarily for quick access.
• Storage: Hard drives or SSDs used for long-term data storage.

Physical Infrastructure Overview

This includes data centers, power systems, cooling, and network cabling—ensuring hardware runs reliably and efficiently.

3.2 Software Components

Software controls the hardware and enables systems to perform tasks.

Operating Systems

Manage hardware resources and provide the platform for applications (Windows, Linux, macOS).

Applications

User-facing programs like web apps, mobile apps, and desktop tools.

Middleware

Acts as a bridge between applications and the operating system, enabling communication, integration, and data management.

3.3 Network Components

Networking elements allow systems and devices to communicate and exchange data.

Routers, Switches, Firewalls

• Routers: Direct traffic between networks.
• Switches: Connect devices within a local network.
• Firewalls: Protect systems by controlling incoming and outgoing traffic.

Network Protocols and Communication Flow

Protocols like TCP/IP, HTTP, and DNS define how data moves across networks, ensuring secure and reliable information exchange.

3.4 Data Architecture

Data architecture defines how information is stored, managed, and accessed.

Databases (SQL, NoSQL)

• SQL: Structured data with fixed schemas.
• NoSQL: Flexible schemas for large-scale or unstructured data.

Data Storage and Retrieval

Includes file systems, data warehouses, and storage services that ensure fast and reliable access to information.

Caching Basics

Caching stores frequently accessed data in memory (Redis, Memcached) to improve speed and reduce load on databases.

Common Types of System Architecture

4.1 Monolithic Architecture

A monolithic system is built as one unified application where all components are tightly connected.

How It Works

• All features and functionalities run within a single codebase.
• A single deployment package contains the entire application.
• Components share the same memory and resources.

Pros and Cons

Pros:

• Simple to develop initially
• Easier to test and deploy as a single unit
• Good for small applications

Cons:

• Difficult to scale specific parts
• Hard to update or maintain as the system grows
• One failure can affect the entire application

4.2 Layered Architecture

Layered (or n-tier) architecture separates the system into layers, each with a specific responsibility.

Presentation, Business, Data Layers

• Presentation Layer: User interface and interaction
• Business Layer: Logic and rules that process data
• Data Layer: Database operations and storage

Use Cases

• Enterprise applications
• Web applications
• Systems requiring clear structure and maintainability

4.3 Client-Server Architecture

This model separates the system into two main parts: clients that request services and servers that provide them.

Request/Response Model

• Client sends a request (e.g., a browser accessing a website)
• Server processes the request and returns a response
• Supports multiple clients connecting to a central server

Examples in Everyday Systems

• Web browsing
• Email systems
• Online banking
• File-sharing applications

4.4 Microservices Architecture

Microservices break large applications into smaller, independent services that communicate through APIs.

Independent Services

• Each service handles a specific function
• Can be developed, deployed, and scaled separately
• Services use different technologies or databases if needed

Scalability Advantages

• Scale only the service that needs more resources
• Enables faster updates and deployments
• Improves system resilience since one service failing does not break the whole application

How System Architecture Works

Simple Data Flow Explanation

System architecture defines how data moves through different components—from the user interface to the backend and back. Each part of the system has a specific role, and together they create a seamless flow of information.

Basic Flow

1. User sends a request (e.g., clicking a button or loading a page).
2. The request travels through the network to the server.
3. The server processes the request using software and business logic.
4. The server interacts with the database if data is needed.
5. The response is generated and sent back to the user.

User Request to Server Response

This is the core interaction model of most systems.

Step-by-Step Process

• Client Side: The user interacts with the application interface.
• Network Layer: Routers and switches forward the request to the appropriate server.
• Server Layer:
  • The application server interprets the request.
  • Business logic determines what action to take.
• Database Layer:
  • The server queries or updates the database.
  • Data is retrieved, processed, and prepared for output.
• Response Back to User:
  • The server formats the output (HTML, JSON, etc.).
  • The response travels through the network back to the client.
  • The user sees the final result on their device.

Role of Each Architectural Component

Hardware

• Hosts the application and database
• Provides computing resources (CPU, memory, storage)

Software

• Executes logic
• Handles requests, data processing, and rendering responses

Network Components

• Transfer data between users, servers, and databases
• Ensure communication reliability and security

Data Layer

• Stores and retrieves information
• Uses caching to speed up repeated requests

Designing a Basic System Architecture

6.1 Understanding Requirements

Before creating any architecture, you must define what the system needs to achieve.

Key Steps

• Identify functional requirements (what the system must do)
• Define non-functional requirements (performance, security, reliability)
• Understand user expectations and business goals
• Estimate expected traffic, data volume, and usage patterns

6.2 Selecting Components (Hardware, Software, Network)

Choosing the right components is essential for building a functional and efficient architecture.

Hardware

• Servers
• CPUs, RAM, and storage
• Load balancers and network equipment

Software

• Operating system
• Applications and services
• Middleware and APIs

Network

• Routers, switches, firewalls
• Communication protocols
• Cloud or on-prem connectivity

6.3 Creating System Diagrams

System diagrams visualize the architecture and help teams understand how components interact.

Types of Diagrams

• Block diagrams: High-level overview of system parts
• Flowcharts: Show how data moves through the system
• UML diagrams: Define relationships between components

Why Diagrams Matter

• Improve communication
• Help identify missing elements
• Serve as documentation for future updates

6.4 Ensuring Scalability and Security

A good architecture must handle growth and protect data.

Scalability Considerations

• Support horizontal or vertical scaling
• Use load balancers and caching
• Choose cloud services that auto-scale

Security Measures

• Access control and authentication
• Data encryption
• Secure network configurations
• Regular vulnerability checks

6.5 Testing Architecture Flow

Testing ensures the design works as expected before full deployment.

What to Test

• Data flow between components
• Response times and performance
• Failover and error handling
• Integration with external services

Testing Methods

• Prototype testing
• Load and stress testing
• Security and penetration testing
